Basic_quartz_stabilized_oscillator

Published:2009/7/24 7:17:00 Author:Jessie | From:SeekIC

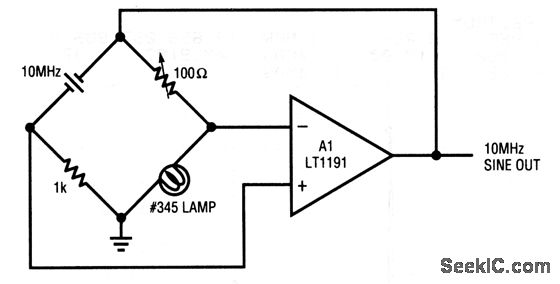

This circuit uses a crystal within an amplifier's feedback path to create an oscillator. Although shown as 10 MHz, the circuit works well with a wide variety of crystal types over a 100-kHz to 20-MHz range. The use of a lamp to control amplifier gain is a classic technique that was first used in 1938. Linear Technology Corporation, 1991, AN47-49.
