Balanced_modulator_for_SSB_operation

Published:2009/7/23 22:41:00 Author:Jessie | From:SeekIC

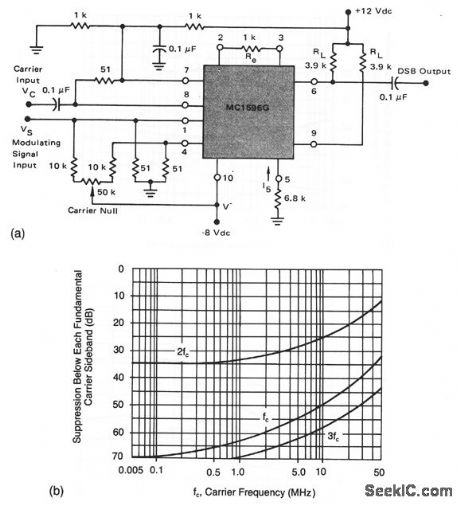

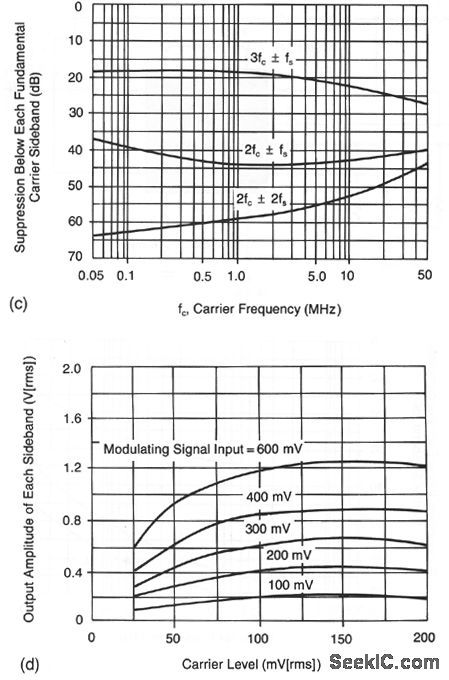

This circuit shows an MC1596 operating as a balanced modulator with +12-V and -8-V supplies. Recommended input signal levels are 60 mV (rms) for the carrier and 300 mV (rms) for the maximum modulating signal. Figures 2-42B and 2-42C show the suppression of carrier and sidebands, respectively. Figure 2-42D shows the sideband output levels.
