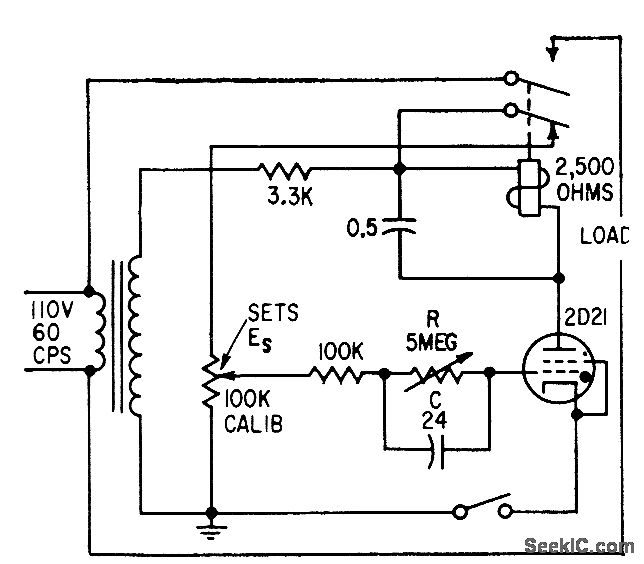

BASIC_THYRATRON_TIMER

Published:2009/7/23 22:16:00 Author:Jessie | From:SeekIC

Is not completely linear, partly because of contact potential in grid circuit, but nonlinearity errors are usually less than 3% up to about 60 sec.-R. L. Ives, Timer Made More Linear, Electronics, 32:5, p 66-69.
