BASIC_HYBRID_UJT_NPN_TIMER

Published:2009/7/23 22:36:00 Author:Jessie | From:SeekIC

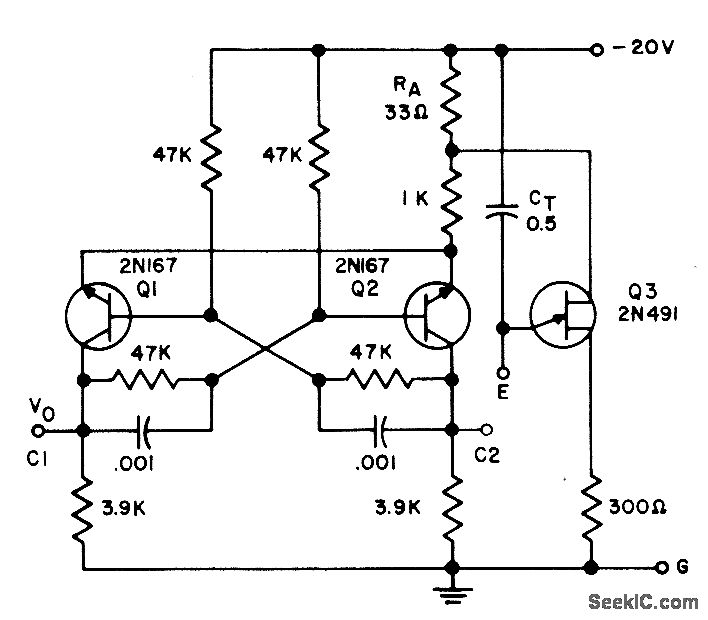

Serves as symmetrical square-wave mvbr when fixed or variable resistor is connected between E and G. Serves as one-shot mvbr when fixed or variable resistor is connected between C1 and E. Other external connections give con stunt or variable-frequency nonsymmetrical multivibrators.- Trcansistor Manual, Seventh Edition, General Electric Co., 1964, p 338.
