Agricultural non-tower pressurized water feeder circuit diagram 1

Published:2011/6/18 20:25:00 Author:Lucas | Keyword: Agricultural, non-tower , pressurized , water feeder | From:SeekIC

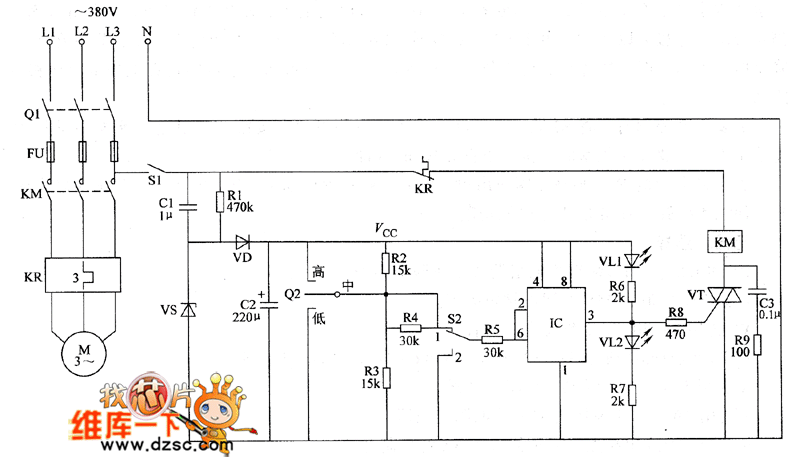

The agricultural non-tower pressurized water feeder circuit is composed of the power supply circuit and the detection control circuit, and the circuit is shown as the chart 1. Power supply circuit consists of the knife switch Q1, fuse FU, power switch S1, step-down capacitor C1, drain resistor R1, Zener diode VS, rectifier diode VD and filter capacitor C2. Detection control circuit is composed of electric contact pressure gauge Q2, resistors R2 ~ R9, capacitor C3, control switch S2, time-base integrated circuit IC, LEDs VL1, VL2, thyristor VT, AC contactor KM and thermal relay FR. R1 ~ R9 select 1/4W metal film resistors or carbon film resistors.
