A_D_dividers_using_the_AD7520_18_pin_DIP

Published:2009/7/21 4:07:00 Author:Jessie | From:SeekIC

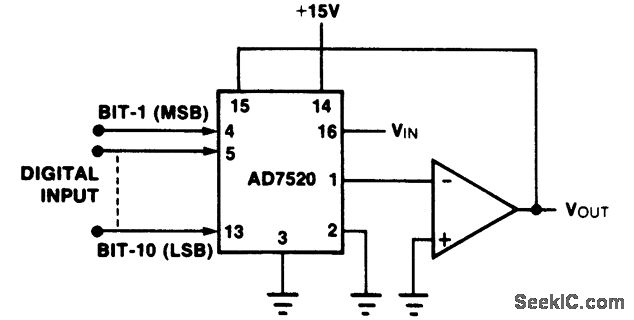

A/D dividers using the AD7520 18-pin DIP. With all bits off the amplifier saturates since division by zero isn’t defined. With the LSB (bit 10) on the gain is 1023. With all bits on the gain is 1 (courtesy Intersil, Inc.).
