AUTOMATIC_CHROMA_CONTROL

Published:2009/7/20 22:09:00 Author:Jessie | From:SeekIC

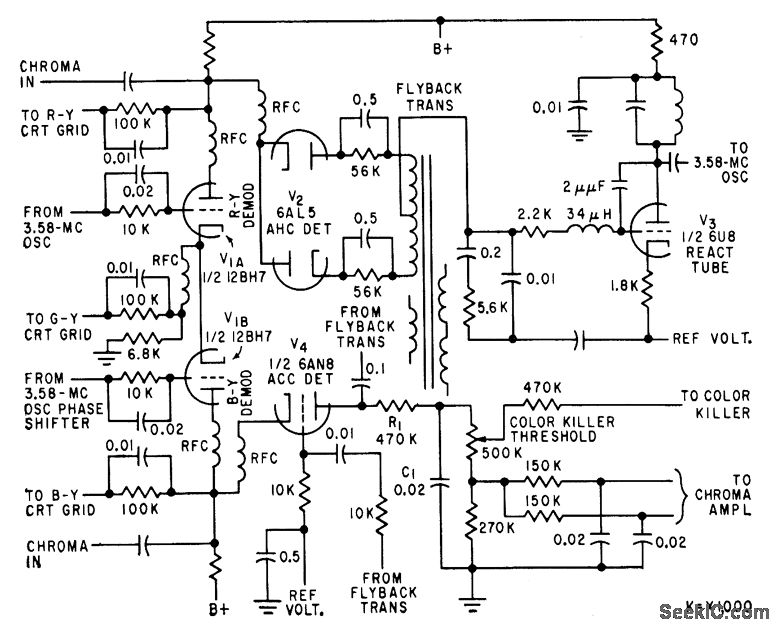

Improves stability of hue, saturation, noise, and pull in characteristics of received color tv signals. Low-frequency diode gate corrects subcarrier oscillator phase from synchronous demodulator signals and establishes signal level for a chromo control circuit.-Z. Wiencek, Automatic Controls for Color Television, Electronics, 32:20, p 58-59.
