AUDIO_TO_ADC_INTERFACE

Published:2009/6/16 23:02:00 Author:May | From:SeekIC

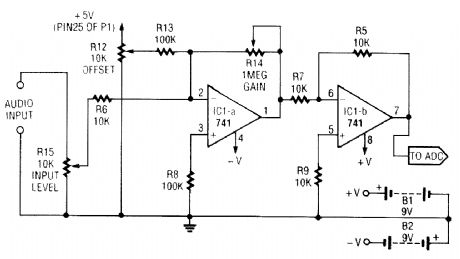

This simple general-purpose driver for an analog/digital converter uses two 741 IC devices with adjustable gain and offset. Other op amps might be substituted, but some circuit adjustments might beneeded.
