AMPLIFIED_FIELD_STRENGTH_METER

Published:2009/6/16 2:11:00 Author:May | From:SeekIC

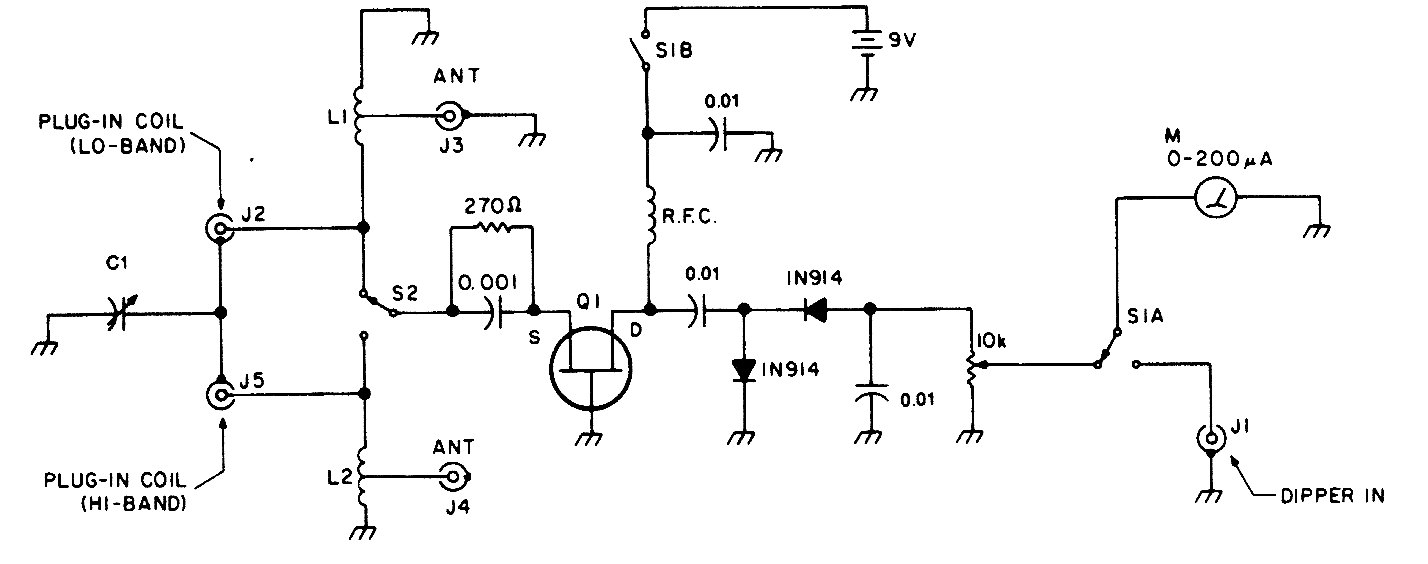

FET Q1 acts as an RF amplifier to boost sensitivity of the usual diode detector field strength meter.
