AFC_FOR_COLOR_TV_KLYSTRON

Published:2009/7/20 22:07:00 Author:Jessie | From:SeekIC

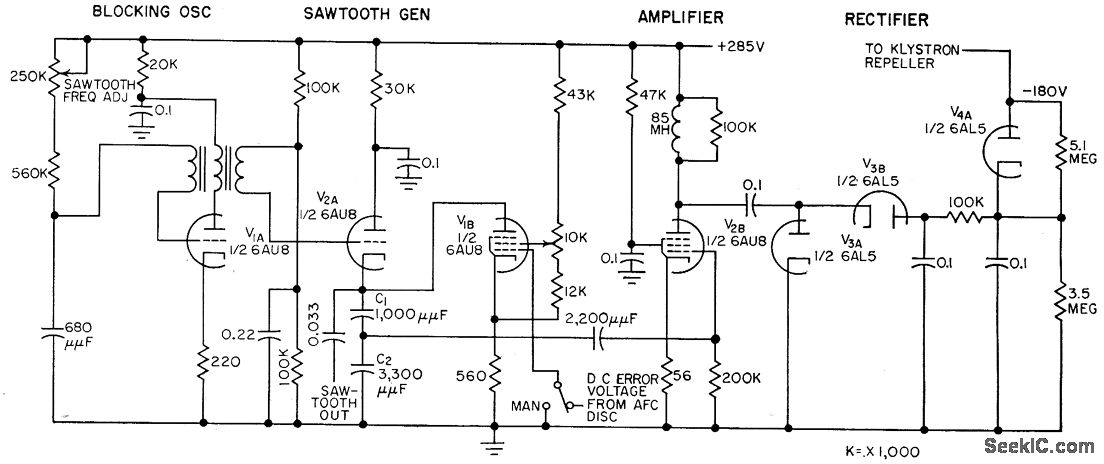

Used with visual f-m transmitter for microwave ralay. Klystron locks to crystal i-f difference frequency to provide required high degree of stability. Calibrated wavetrap modifies sawtooth waveshape of afc to provide internal frequency monitoring. -T .-G. Custin and J. Smith, Relay System Diplexes Audio and Color Video, Electronics, 31:25, p 64-67
