8_channel_video_mux_amplifier

Published:2009/7/22 22:47:00 Author:Jessie | From:SeekIC

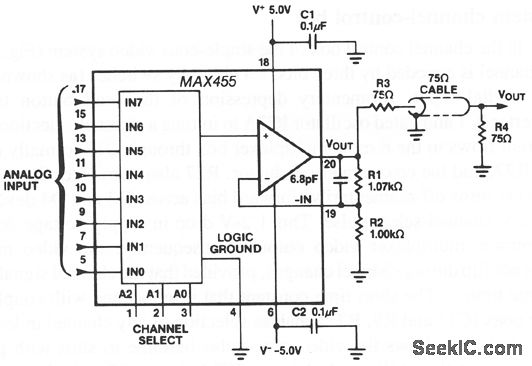

This circuit provides a 50-MHz gain-bandwidth (unity gain at the cable end) video MUX, which is controlled by a 3-wire channel select. The cable is back-terminated (R3) to match cables and reduce reflections.
