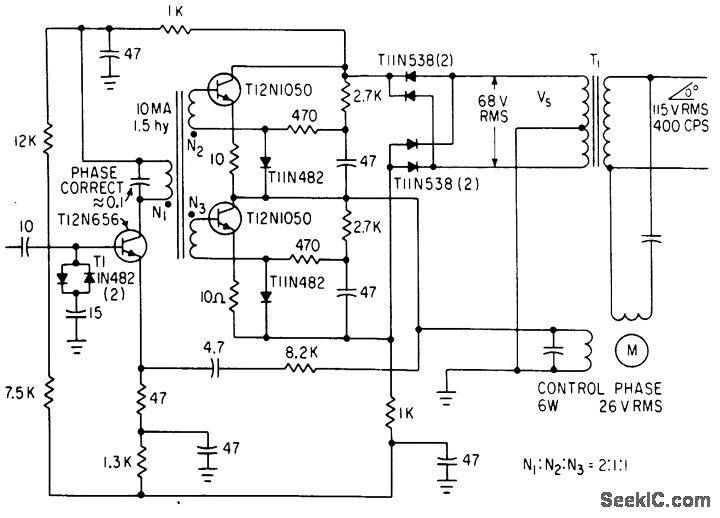

6_WAlT_SERVO_AMPLIFIER

Published:2009/7/23 23:50:00 Author:Jessie | From:SeekIC

Unconventional output stage eliminates need for center tap on servomotor for controlled winding, gives 55% overall efficiency.-J. A. Walston and J. E. Setliff, Designing Servo Amplifiers for High Efficiency, Electronics, 36;6, p 62-63.
