4_decade_synchronous_counter_with_data_display_multiplexing

Published:2009/7/22 4:17:00 Author:Jessie | From:SeekIC

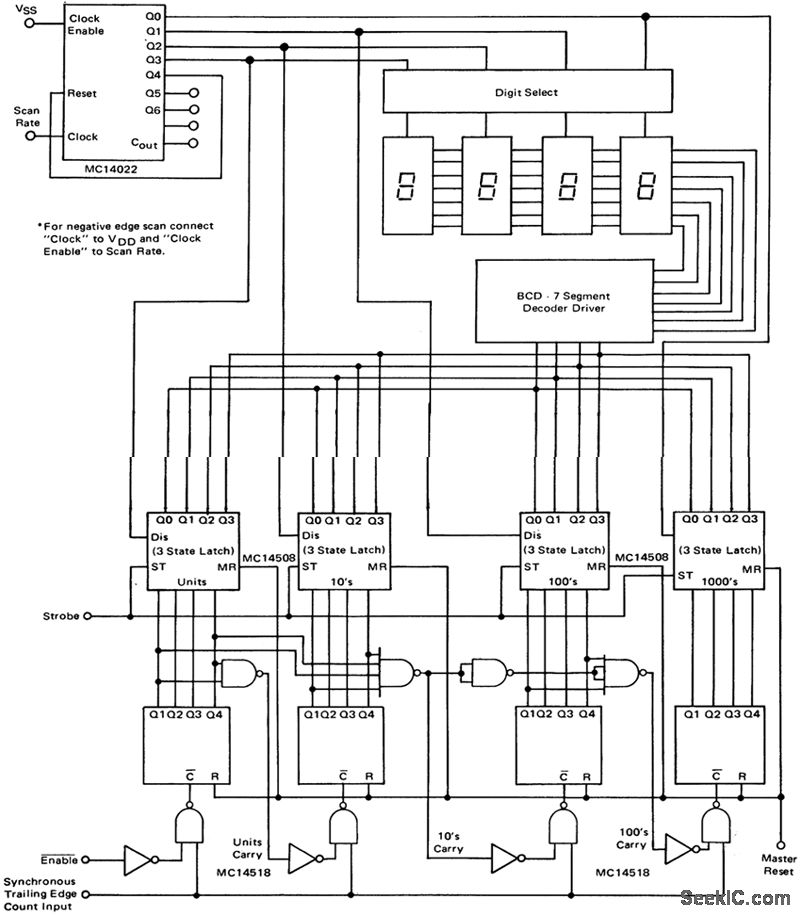

4-decade synchronous counter with data display multiplexing (courtesy Motorola Semiconductor Products Inc.).
