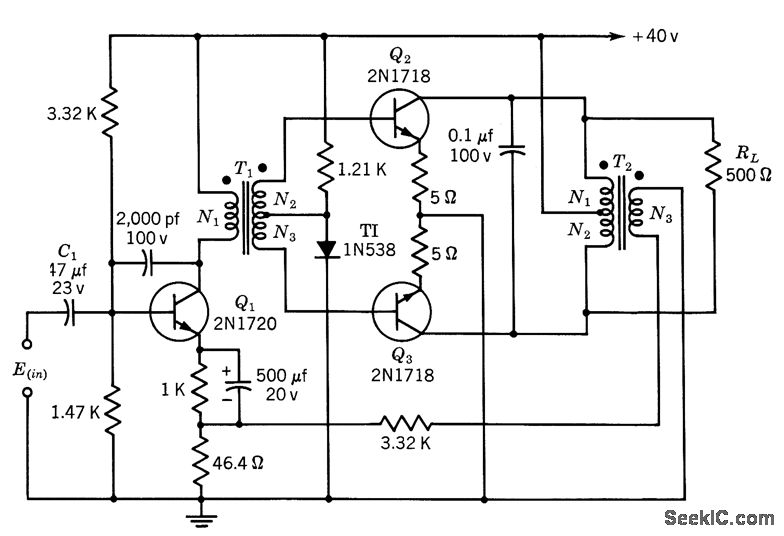

4_W_CLASS_B_SERVO_AMPLIFIER

Published:2009/7/23 23:17:00 Author:Jessie | From:SeekIC

Gives power gain of 42 db. Voltage amplification is constant within 2.5 db of 42.5 db. Transformer data is for 400-cps operation. -Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 241.
