45_MHz_58_MHz_BF_ampllfier_with_tuned_input

Published:2009/7/20 23:22:00 Author:Jessie | From:SeekIC

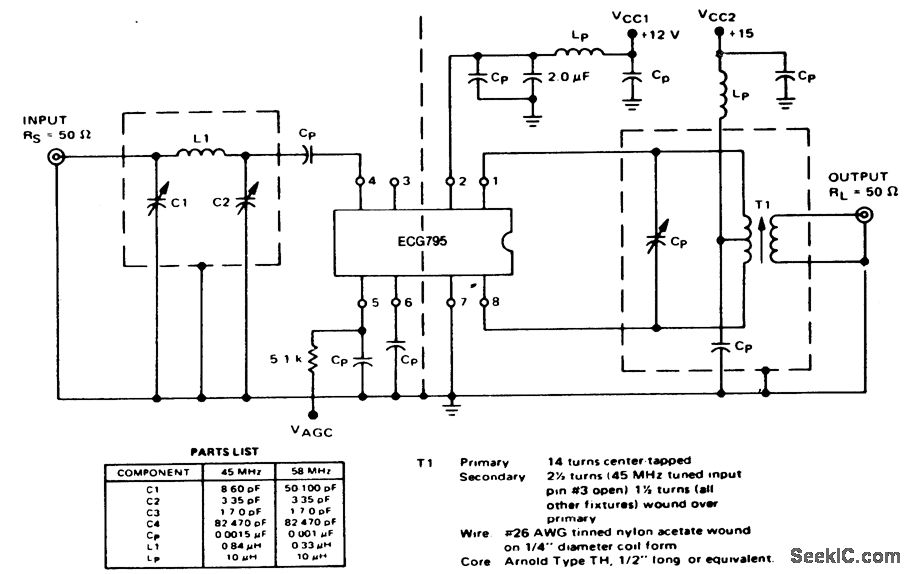

45 MHz/58 MHz BF ampllfier with tuned input．See listing for component values(courtesy GTE Sylvania Incorporated)．
