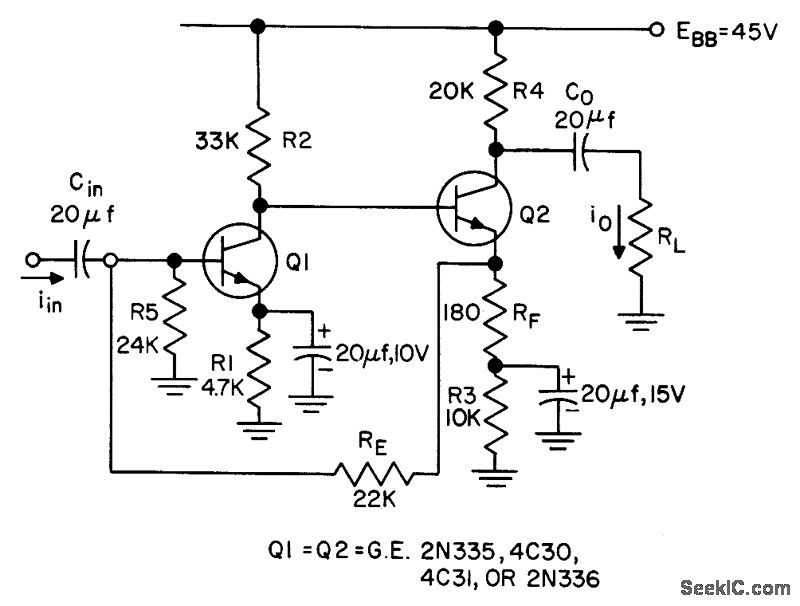

400_CPS_PREAMP_FOR_TWO_PHASE_SERVO_MOTOR

Published:2009/7/24 1:35:00 Author:Jessie | From:SeekIC

Bias point and gain are stable over wide temperature range, from -55 to 125℃.No selection of transistors is required. Bias design procedure and design equations are given.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 218.
