315_KC_CRYSTAL_OSCILLATOR

Published:2009/7/19 23:58:00 Author:Jessie | From:SeekIC

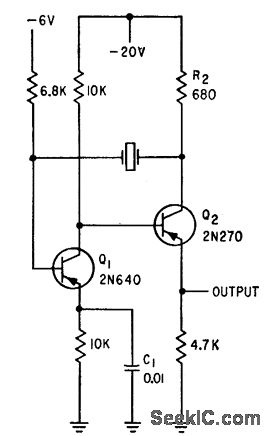

Provides sync signals for tv camera sweeps. Crystal vibrates in lowest-frequency natural mode of long thin bars, resulting in high impedance and difficulty in exciting crystal, and making it necessary to use two transistors in symmetrical collector-coupled mvbr oscillator.-D. G. Cartoon, Designing Transistorized Television Cameras, Electronics, 33:37, p 72-75.
