200_MC_BINARY_FOR_INTERVAL_TIMER

Published:2009/7/23 22:29:00 Author:Jessie | From:SeekIC

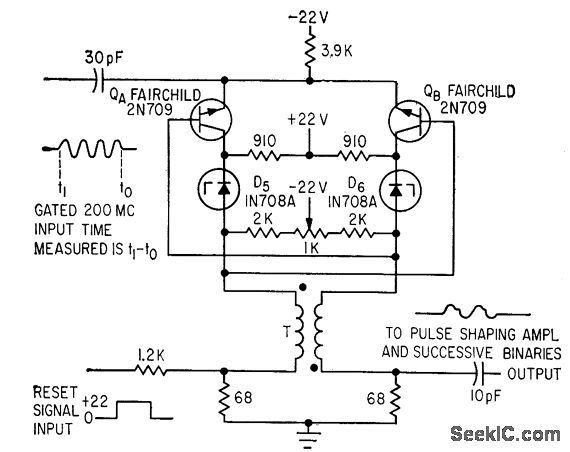

Gated 200-Mc input is fed to both emitters. Individual tenet diodes provide collector bias. Base bios is obtained from collector resistor load of opposite transistor. Potentiometer permits perfect balancing. Time intervals are measured accurately to 5 nsec.-C. S. Coffey, VHF Counter Measures Time Iptervals Precisely, Electronics, 36:34, p 27-29.
