1_Hz_to_1_MHz_sine_wave_VCO

Published:2009/7/25 3:27:00 Author:Jessie | From:SeekIC

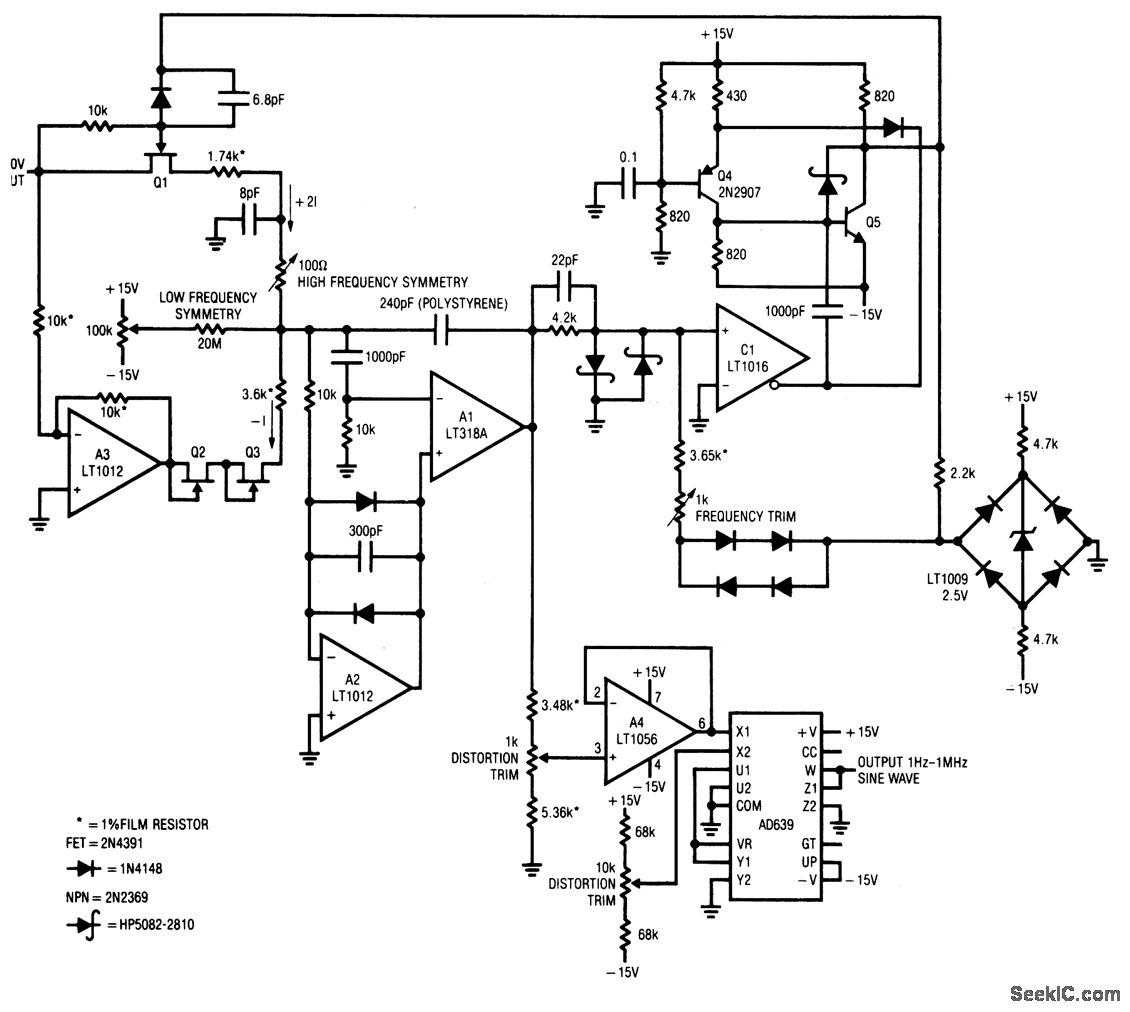

For a 0- to 10-V input, this circuit produces sine-wave outputs of 1 Hz to 1MHz, Both symmetry and distortion can be trimmed ndependently.
