15_W_CLASS_B_SERVO_AMPLIFIER

Published:2009/7/23 23:36:00 Author:Jessie | From:SeekIC

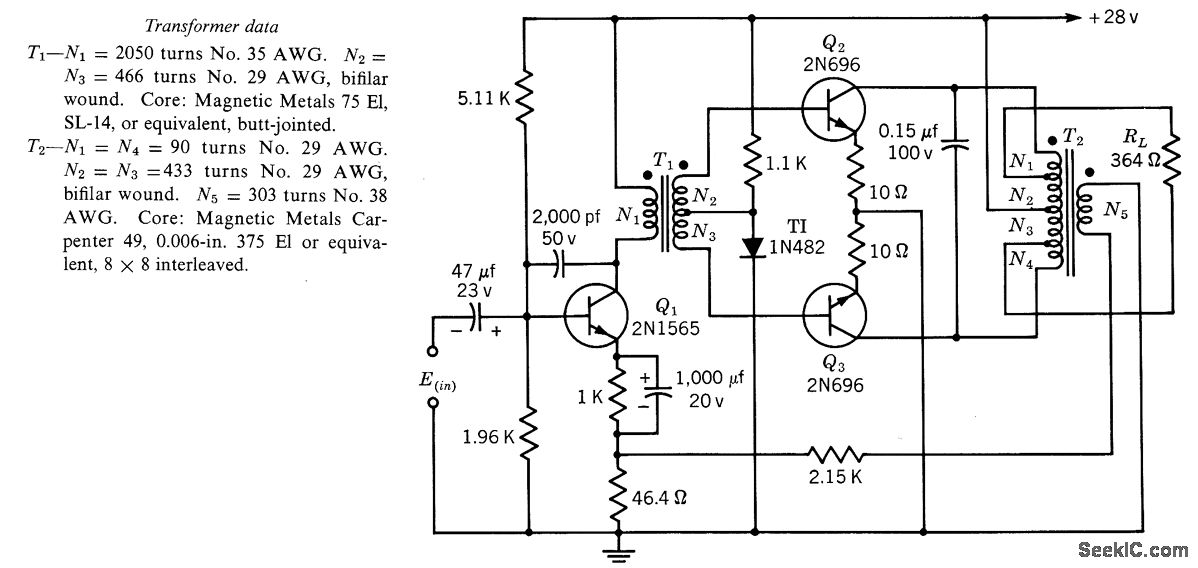

Gives power gain of 38 db. Voltage amplification is constant within 1.5 db of 40.5 db. Transformer data is for 400-cps operation.-Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 240.
