150__to_300_MHz_frequency_doubler

Published:2009/7/23 22:25:00 Author:Jessie | From:SeekIC

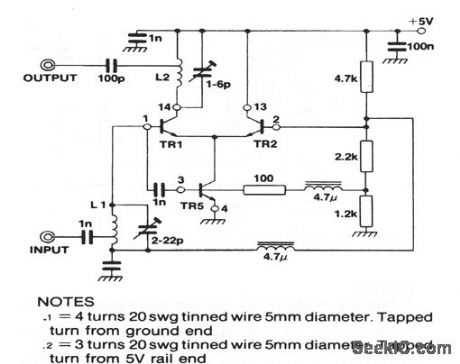

This circuit shows an SL2365 transistor array (Fig. 2-35B) connected as a frequency doubler, with a gain of +1 dB for a -20 dB input, and an input-frequency rejection of 18 dB.
