12_VDC_DRIVE

Published:2009/7/20 23:05:00 Author:Jessie | From:SeekIC

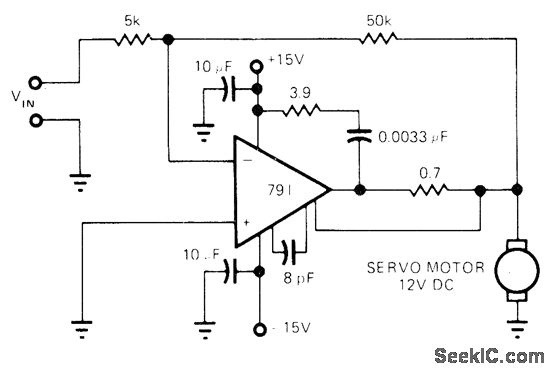

Circuit uses 791 power opamp in inverting configuration with gain of 10 for driving size 8 12-VDC servomotor in either direction. Article tells how to calculate heatsink requirements for opamp.-R. J. Apfel, Power Op Amps-Their Innovative Circuits and Pack-aging Provide Designers with More Options, EDN Magazine, Sept. 5, 1977, p 141-144,
