wireless remote control switch circuit(two)

Published:2011/7/12 7:14:00 Author:Lena | Keyword: wireless, remote control, switch | From:SeekIC

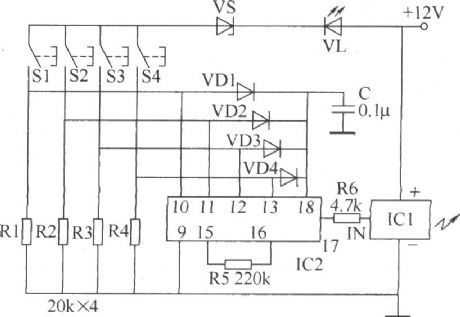

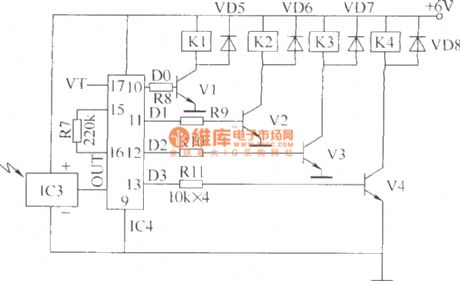

Here introduces a 4-way wireless remote control switch which adopts wireless remote control transmitting/receiving and wireless remote control coding/decoding integrated circuit, and the switch can control four kinds of different appliance or control different work states of the one applianceat one time.This wireless remote control switch circuit consists of wireless remote control transmitting circuit and wireless remote control receiving circuit, as shown in the figure.The wireless remote control transmitting circuit consists of wireless remote control transmitting head IC1, wireless remote control coder and switch control circuit.
