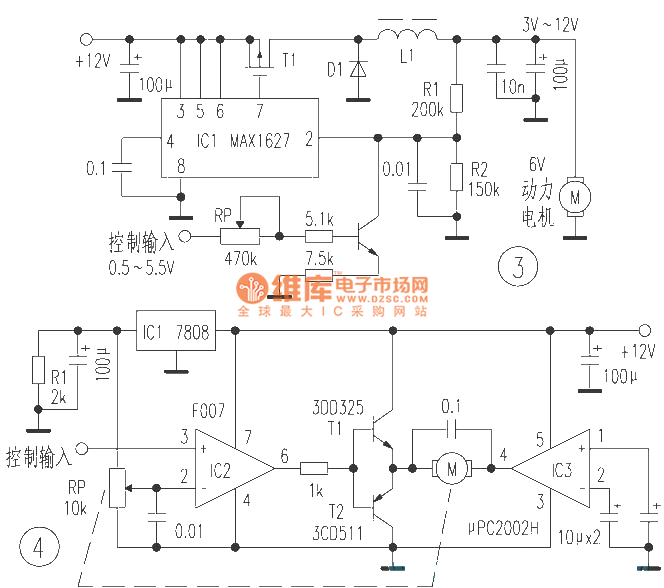

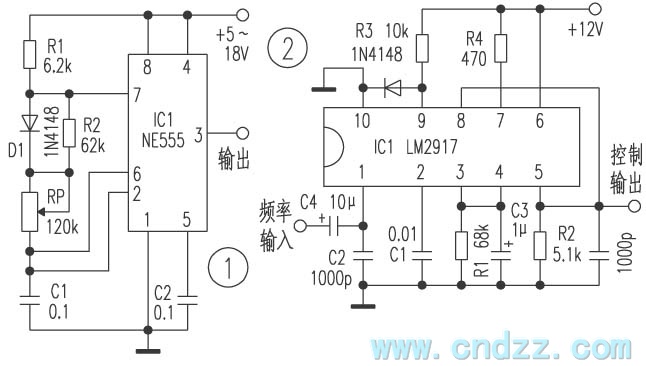

The tri-proportion controller is used to control electromotor rotate speed or oil plants engine accelerograph bulk etc in various power remote control models. Here introduces code/encode and control circuit which can realize above functions.This device realizes the remote tri-proportion control by altering transmitter modulation frequency. Figure 1 is the transmitter frequency regulation circuit, altering the bulk of potentiometer RP can make oscillator frequency change between 100Hz and 1 kHz, the output end of this circuit connects modulation input of high frequency transmitter.
