btl circuit theory and circuit diagram

Published:2011/9/12 22:21:00 Author:Rebekka | Keyword: btl circuit theory | From:SeekIC

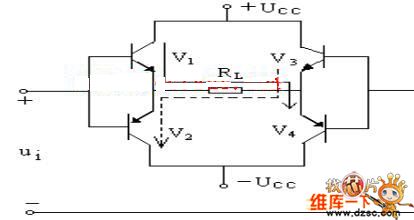

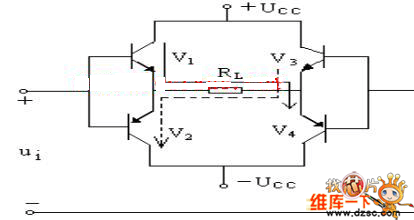

The working theory circuit diagram is shown as above. There is no direct current in load RL. In the positive half cycle of the ui, the top is positiveand down is negative, V1 and V4 areturned on, V2 and V3 stop, the current passing load RL is shown as the real line in the figure; In the negative halfcycle of the ui, negative is on the top and down is the positive, V1 and V4 stop, V2 and V3 turn on, the current passing load RL is shown as the dotted line in the figure. Ignore saturation voltage, two halfs cycles will be compounded. It can get output signal voltagewith width in UCC from load.
