_TONE_CONTROL

Published:2009/7/7 5:03:00 Author:May | From:SeekIC

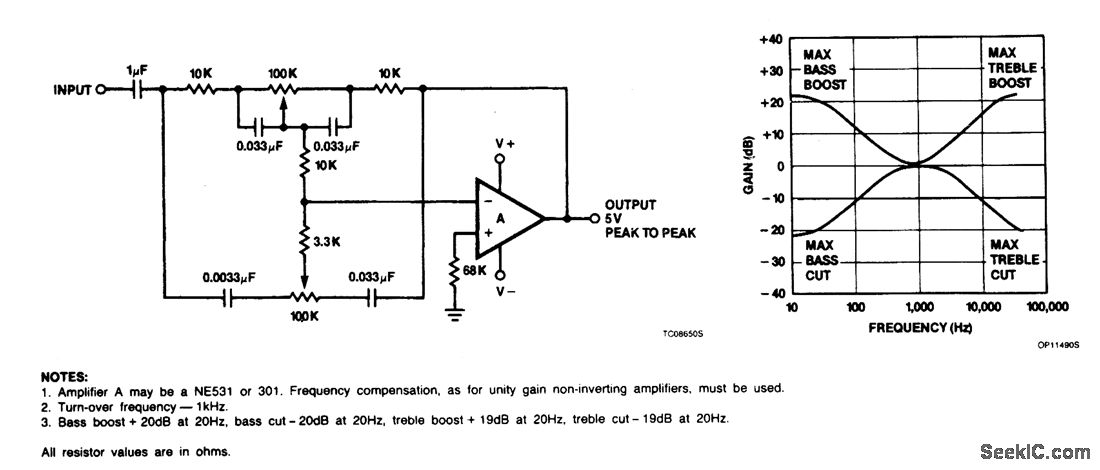

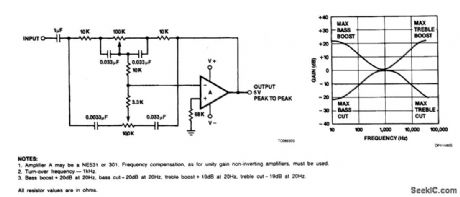

Tone control of audio systems involves altering the flat response ul order to attain more low frequenctes or more high ones,ependent upon listener preference.The circuit provides 20 dB of bass or treble boost or cut as set by the variable resistance.The actual response of the circuit is shown also.
