ZERO_POINT_SWITCHING_TEMPERATURE_CONTROL

Published:2009/7/7 22:58:00 Author:May | From:SeekIC

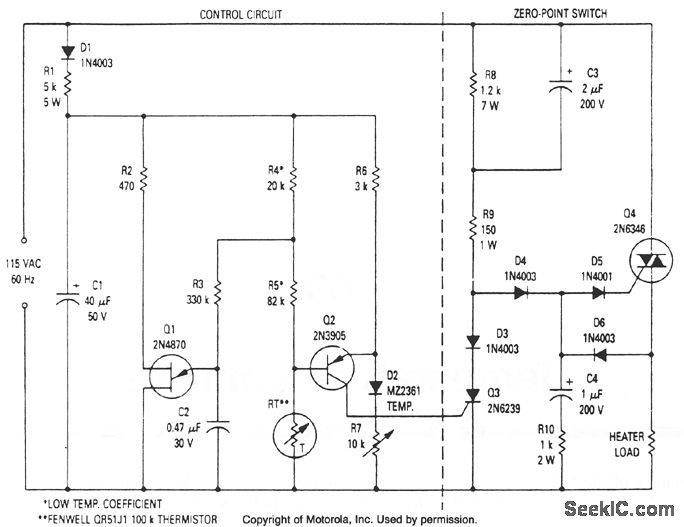

This modulated triac zero-point switching circuit controls heater loads operating from 115 Vac. Circuit operation is best described by splitting the circuit into two parts. The circuit at right is the zero-point switch; to the left is the proportional control for the zero-point switch.
