WATER_LEVEL_SENSING_CONTROL_CIRCUIT

Published:2009/6/25 2:50:00 Author:May | From:SeekIC

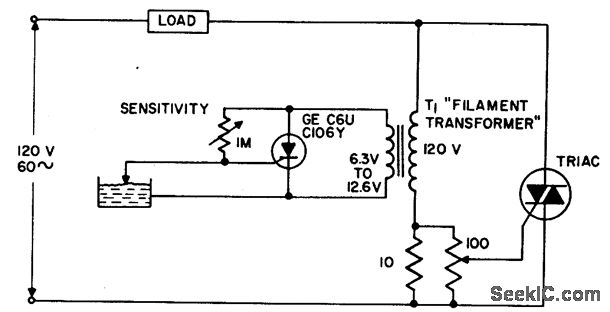

The circuit applies power to the load until the water conducts through the probe, and bypasses gate current from the low current SCR. This gives an isolated low voltage probe to satisfy safety requirements.
