VOLTAGE_CONTROLLED_MONO

Published:2009/7/1 4:52:00 Author:May | From:SeekIC

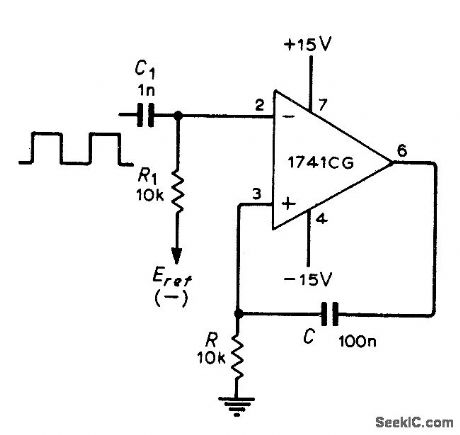

Timing period of opamp operating as monostable multivibrator is controlled by magnitude of DC reference voltage. With square-wave input shown. differentiating action by C1-R1 gives positive pulses that cause mono to make transitions. Article gives design equation and typical waveforms.-G. B. Clayton. Experiments with 0perational Amplifiers, Wireless World, May 1973, p241-242.
