VHF_TRANSCEIVER_T_R_SWITCH

Published:2009/7/14 2:01:00 Author:May | From:SeekIC

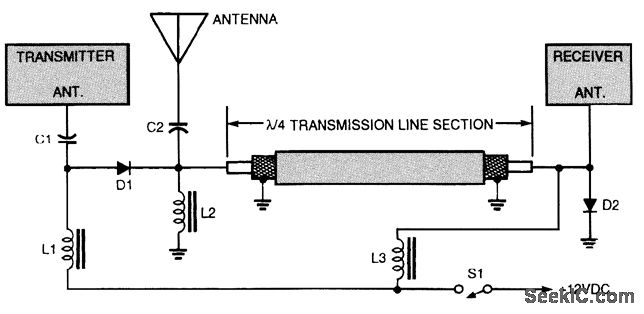

This is a transceiver transmit/receive switch that uses a PIN diode instead of a relay. Diodes can be MV3404 or similar types.
