UNIVERSAL_MOTOR_CONTROL_WITH_BUILT_IN_SELF_TIMER

Published:2009/6/26 1:45:00 Author:May | From:SeekIC

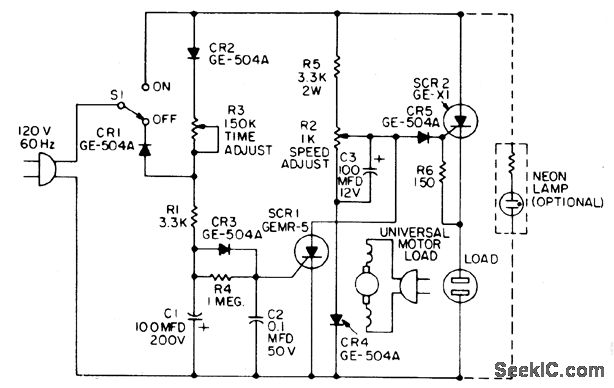

When the time delay expires, SCR1 conducts and removes the gate signal from SCR2, which stops the motor. Both the time delay and motor speed are adjustable by potentiometers R2 and R3. If heavier motor loads are anticipated, use the larger C30B SCR in place of the GE-X1 for SCR2. Also, the capacitance of C1 can be increased to lengthen the tinie delay, if desired.
