Ultra low leakage current multi-channel simulator circuit

Published:2011/6/19 21:23:00 Author:TaoXi | Keyword: Ultra low leakage current, multi-channel simulator | From:SeekIC

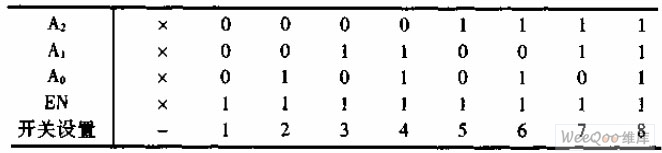

The ultra low leakage current multi-channel simulator circuit MAX328 is designed as one kind of 8-choose-1 analog switch. The three logic control ports and an enable port can be used to form the 16-choose-1 circuit. The switching time is less than 1.5μs. When you are using, every input port is connected with the 1/2W40KΩ resistance, this can make the MAX328 to bear the 110V AC voltage. The single power supply voltage is +10 to +30V, the single power supply operating voltage is +10 to +30V, the double power supply operating voltage is ±5V±18V. The package diagram and the true value table is as shown:
