UNGROUNDED_SWITCH_SCS_CONTACT_ISOLATOR

Published:2009/7/24 4:26:00 Author:Jessie | From:SeekIC

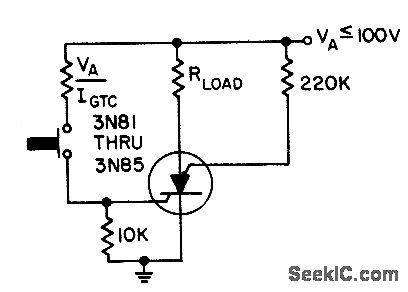

Eliminates contact bounce when switch is dosed to trigger scs, because load current increases rapidly and latches on.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 433.
