Touch delay light circuit adopted power switch integrated circuit

Published:2011/4/18 9:29:00 Author:Nicole | Keyword: delay light, power switch | From:SeekIC

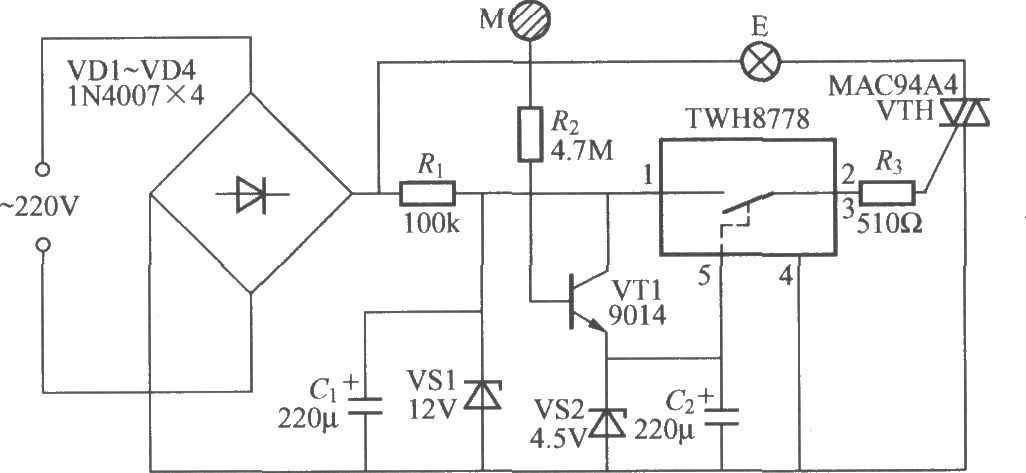

The delay time is determined by the capacity of C2, the figure data is about 25s. If it is needed to delay time, you can increase its capacity. Besides, the touch time also has influence on the circuit delay time.
