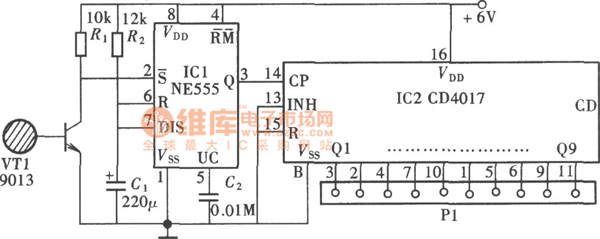

The touch electric switch has simple structure, reliable working state, integrated circuit and low cost. It has 20 channels to choose from. As seen in the figure, the circuituses a double digit monitor for channel display. The circuit consists of touch signal input circuit, control pulse forming circuit, channel selection circuit, channel coding and display circuit.
