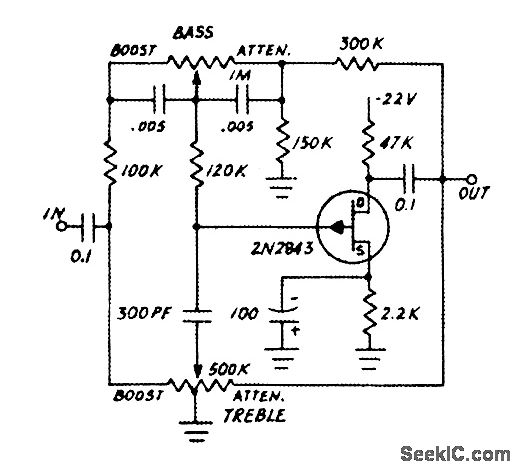

TONE_CONTROL

Published:2009/7/15 2:12:00 Author:Jessie | From:SeekIC

Unlike bipolar transistor, fet maintains full dynamic range whileloading R.C tone control network.-FET's and RC Networks (Siliconix ad), Electronics,39:4, p 71.
