Time_delayed_relay_for_up_to_1_minute

Published:2009/7/21 23:47:00 Author:Jessie | From:SeekIC

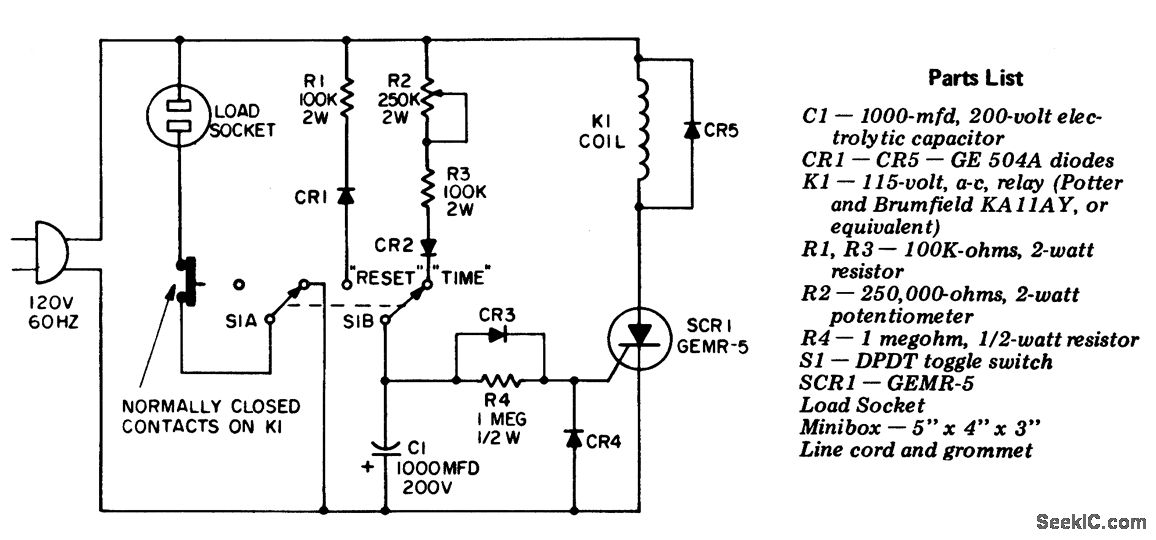

Time-delayed relay for up to 1 minute (courtesy General Electric Company).
