Timing circuit

Published:2011/4/6 4:11:00 Author:Nicole | Keyword: timing | From:SeekIC

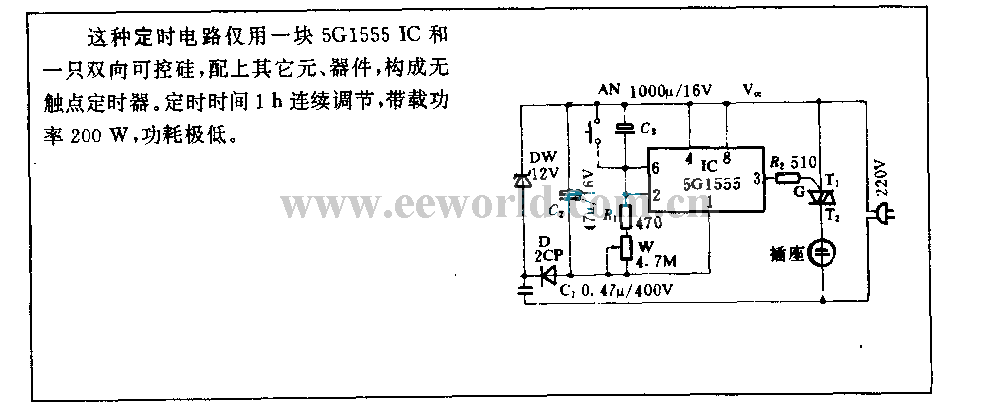

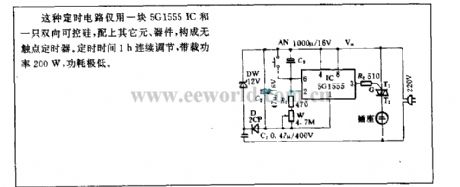

This timing circuit only use a 5GI555 IC and a TRIAC, with other components form non-contact timer. The timing time 1h is continuous regulation, and the loading power is 200W with low power consumption.
