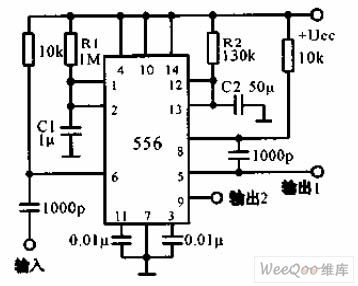

The diagram of sequential timer circuit composed of 556 is shown as above. 556 is a dual timer. The first timer output 1 passes 0.001μF coupling capacitor, then it isadded to the pin 8 of second timer's input end. The total delay is equal to two extension, 1 = 1.1 (R1C1 + R2C2). The wire connected to pin 6 is grounded, then the first timer can be turned on.
