High-precision time delay timing controller circuit diagram

Published:2011/8/11 2:40:00 Author:Rebekka | Keyword: High-precision , time delay, timing controller | From:SeekIC

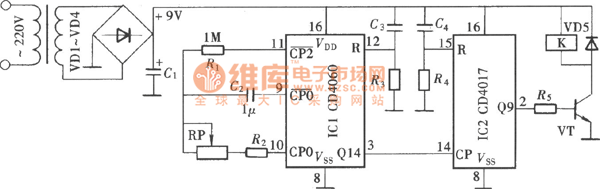

The low frequency RC roscillato oscillator is composed of CD4060 oscillator. It can output a long time base signal after passing the internal frequency division. When the long-time time base signal is divided by multi-level frequency again, a longer time delay time can be gotten, thenit form a high-precision time delay timing controller . The constitution circuit is shown as above.
