The tone control circuit

Published:2012/10/14 21:10:00 Author:Ecco | Keyword: Tone control | From:SeekIC

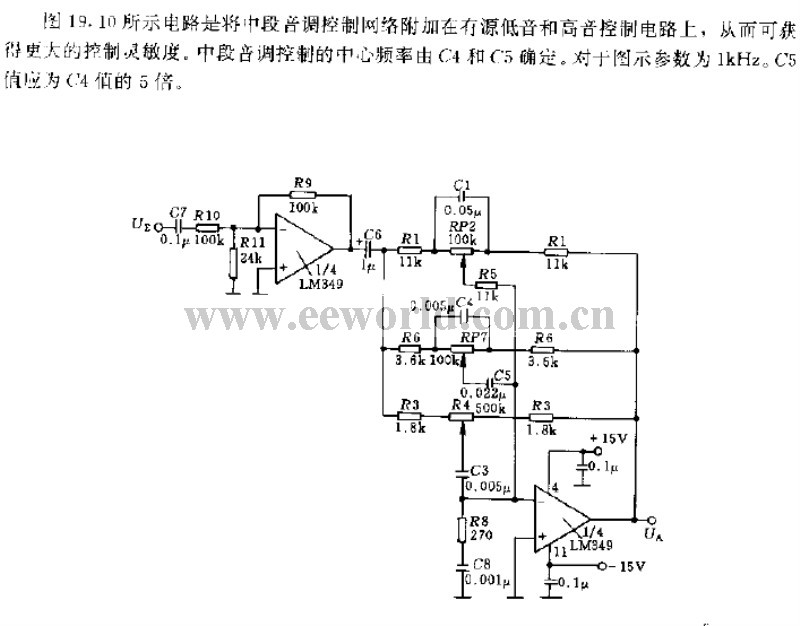

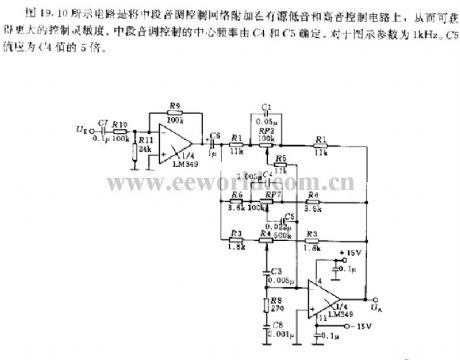

The circuit shown in Figure 19.10 will add the middle tone control network to active bass and treble control circuit, allowing for greater control sensitivity. The middle tone controlling center frequency is determined by C4 and C5. For the icon parameter, it is 1kHz. C5 value should be 5 times of C4 value.
