The temperature controller circuit diagarm 2

Published:2011/9/18 21:15:00 Author:Ecco | Keyword: Temperature controller | From:SeekIC

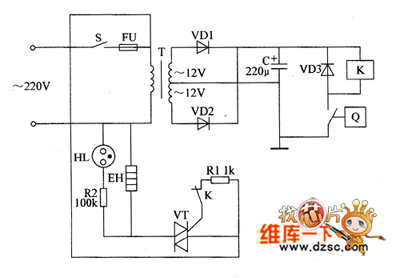

The temperature controller is composed of the power supply circuit and temperature detection control circuit, and it is shown as the chart. Power supply circuit is composed of the power switch s, fuse FU, power transformer T, rectifier diodes VDI, VD2 and filter capacitor C. Temperature measurement control circuit is composed of electric hot thermometer Q, relay Κ, diode VD3, resistors RI, R2, thyristor VT, neon light HL and electric heater EH. RI and R2 use the 1/4W carbon film resistors or metal film resistors.
