The motorcycle anti-theft alarm (2)

Published:2011/7/19 19:21:00 Author:TaoXi | Keyword: motorcycle, anti-theft, alarm | From:SeekIC

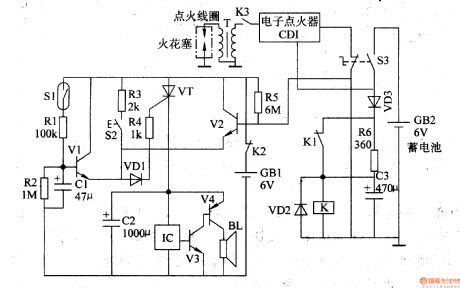

The multi-function motorcycle anti-theft alarm is introduced in this article, and it can be used in the anti-theft applications of all the two-wheel motorcycles. The principle of the circuit The motorcycle anti-theft alarm circuit is composed of the mobile delay alarm circuit, the ignition switch ground wire break alarm circuit, the right cover vandal resistant alarm circuit, the control circuit, the alarm signal generating circuit and the power-saving circuit, as the figure 7-85 shows. The mobile delay alarm circuit is composed of the mercury switch Sl, the resistors Rl and R2, the delay capacitor Cl and the transistor Vl.etc.
