The loom electricity saving controller circuit diagarm 5

Published:2011/6/9 7:20:00 Author:Lucas | Keyword: loom , electricity saving controller | From:SeekIC

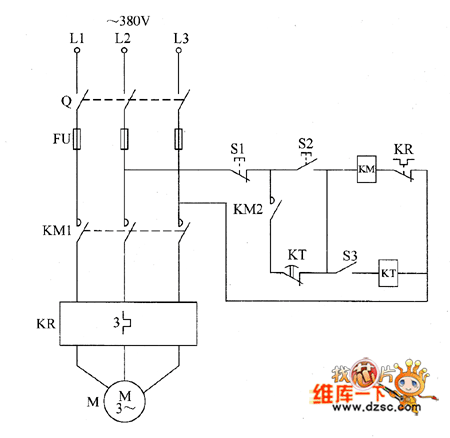

The loom electricity saving controller circuit is composed of the knife switch Q, fuse FU, stop button S1, start button S2, micro switch S3, time relay KT, AC contactor KM, thermal relay KR and motor M,and the circuit is shown as the chart. Turning on the knife switch Q, pressing the start button S2 will make AC contactor KM pull in and the motor M start running. S1 and S2 select compression press buttons; S3 uses the limit switch with the contact current being greater than 1A. KT selects the time relay with the coil voltage being AC 380V. KM selects the AC contact with the coil voltage being 380V, contact current capacity being greater than 15A. Q, FU, and KR should choose with the matching components with M.
