The inductance controlled switch circuit (2)

Published:2011/7/2 23:18:00 Author:Borg | Keyword: inductance controlled, switch circuit | From:SeekIC

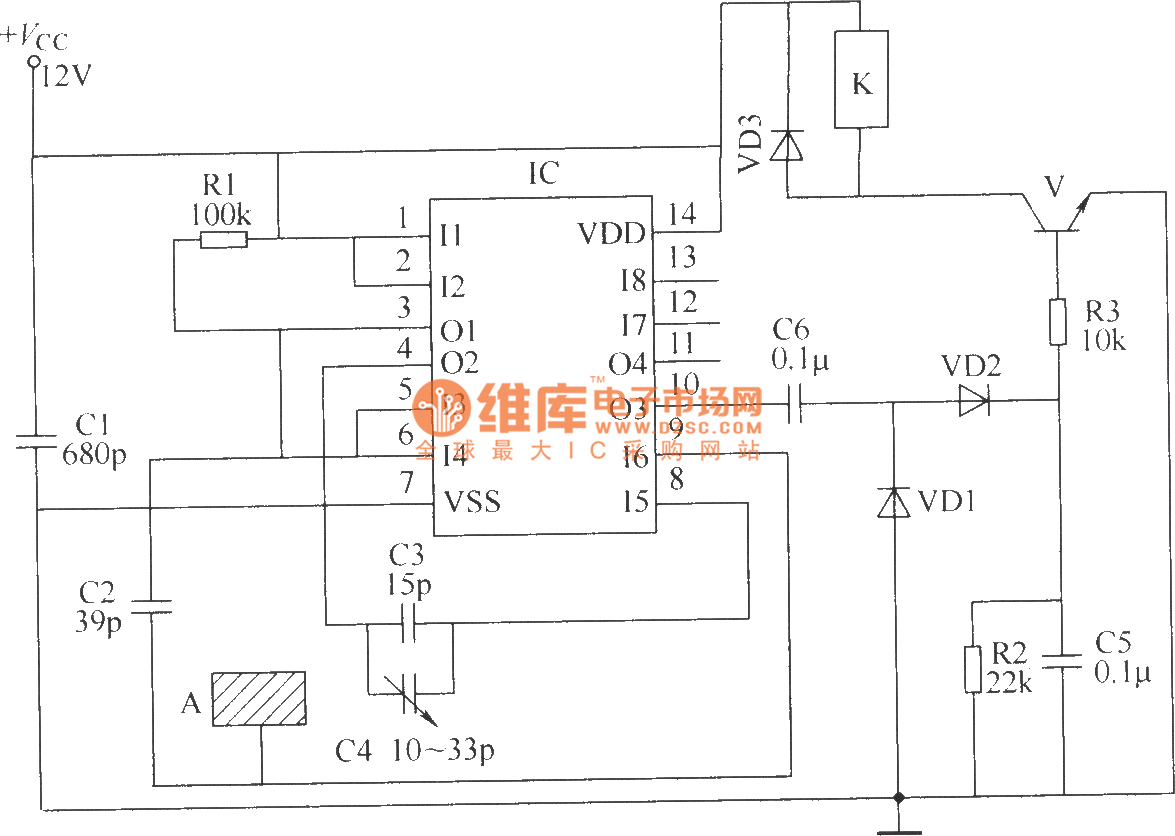

Here is to introduce an inductance controlled switch circuit which is made of the CD4093 digital integrated circuit, it has almost the same functions and features with the separated element inducting control switch. This circuit consists of the inducting electrode plate A, square wave oscillator, trigger control circuit, detecting circuit and control executing circuit, see as the figure. The inductance controlled switch circuitBy adjusting the volume of capacitor C4, the sensibility of the switch can be changed.Element selection R1~R3 are adopted with the 1/4W carbon film resistor or the metal film resistor.
