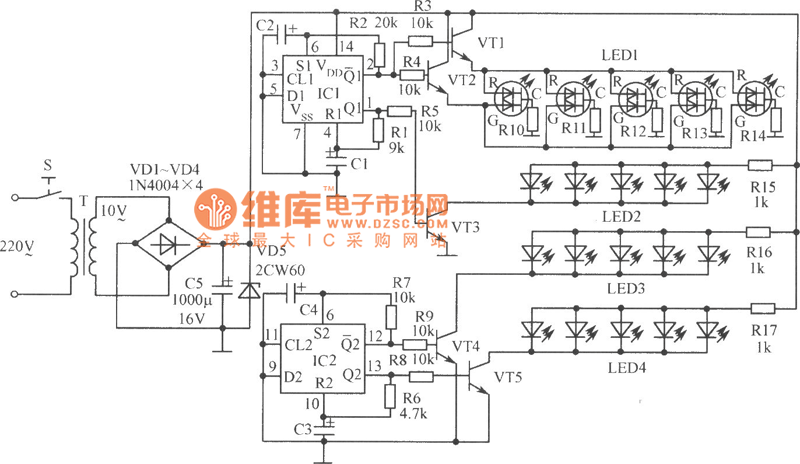

The electric bonsai circuit

Published:2011/6/10 2:48:00 Author:qqtang | Keyword: electric bonsai | From:SeekIC

Element selection: IC1~IC4 are two slices of dual D triggers CD4013; all the transistors VT are installed with 9013 PNP silicon triodes and so on, β>90. The types of LED are not limited, to achieve the flash effect, even the 5 LED in the same time may be of different colors. If the number of the LED is too small, it can be added, but the a little bigger transistors should be used, such as 8050 and DD01,etc. R10～R14 are the resistors of 470Ω. C1~C8 are the electrolytic capacitors of 1001μF/16V. S is a micro light touch power supply switch of CS-316. T is a micro power supply transformer of 220V/10V and 5W.
