The SX-6 human body inducting switch application circuit

Published:2011/7/6 3:03:00 Author:qqtang | Keyword: human body, inducting switch | From:SeekIC

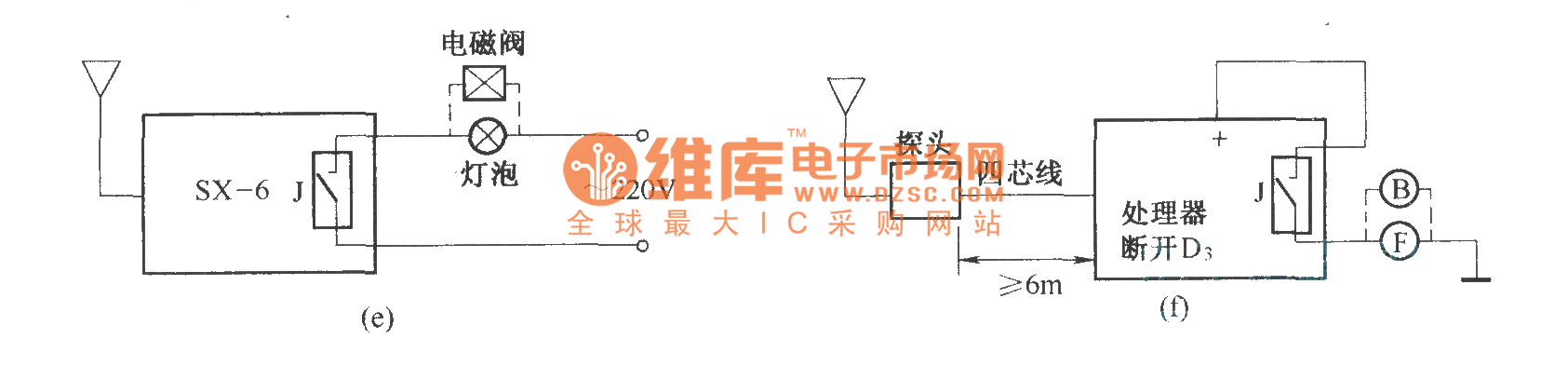

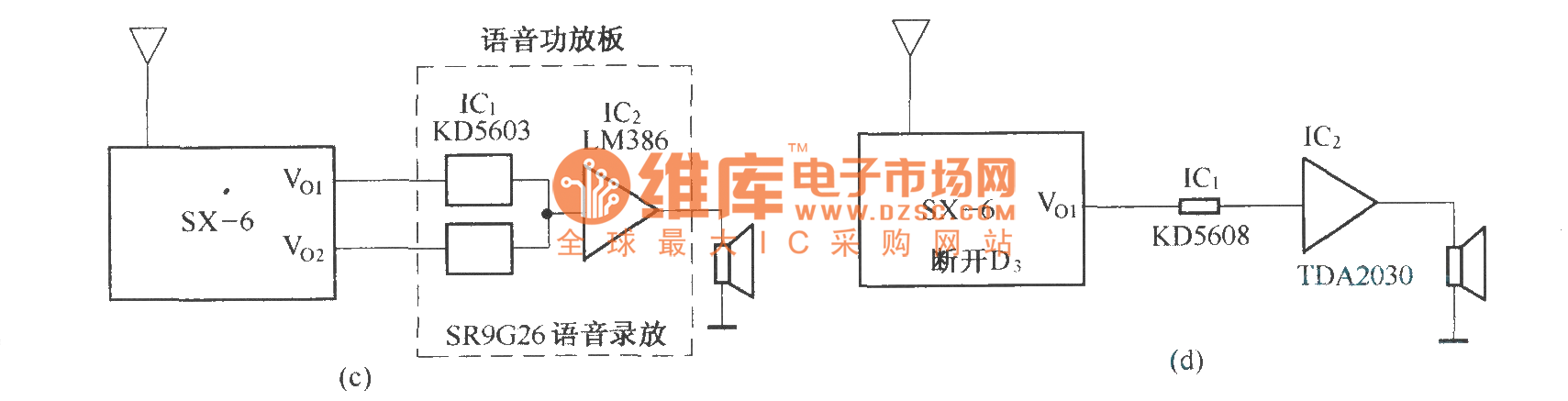

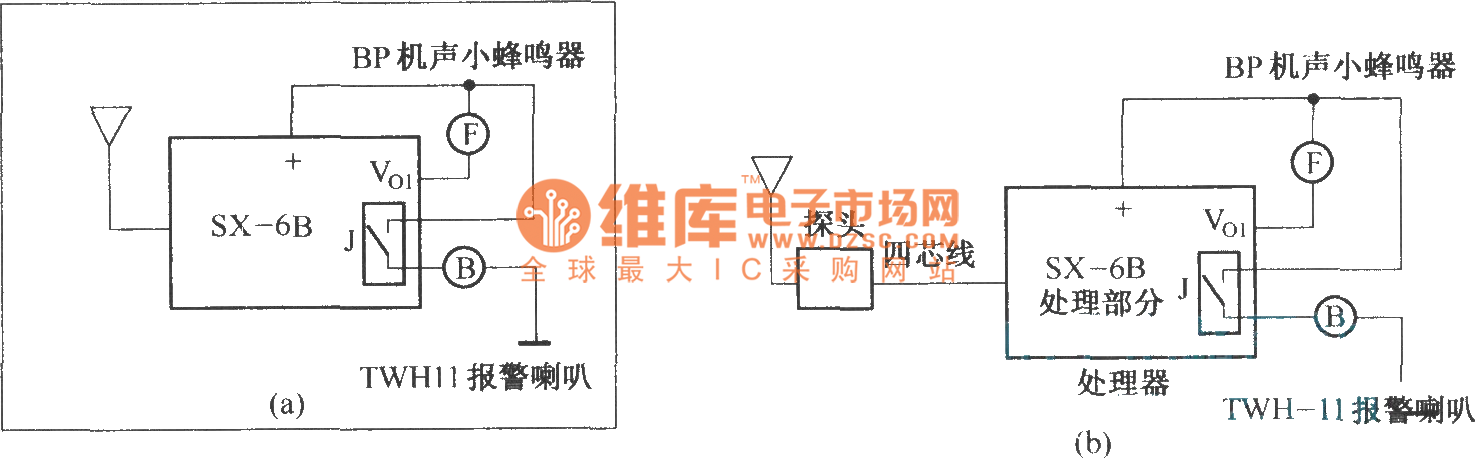

In figure (a) is the radar alarm composed of the SX-6 human body inducting switch; In figure (b) is the radar alarm whose probe and host are divided; In figure (c) is the auto audio device composed of the SX-6 human body inducting switch; In figure (d) is the electric dog circuit composed of the SX-6 human body inducting switch; In figure (e) is the energy-saving auto switch circuit composed of the SX-6 human body inducting switch; In figure (f) is the fast reaction alarm composed of the SX-6 human body inducting switch.
