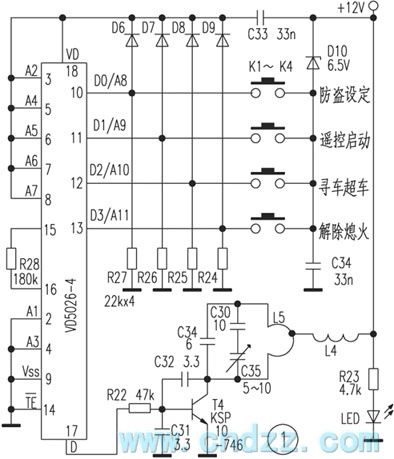

VD5026, T4 and so on in Figure 1 compose the remote control emitting unit. One line of the 12V power supply is directly provided for the high-frequency emitting circuit, the other line gets a 5V or so voltage after the distribution of D10 and R24~R27 when the keys of K1~K4 are pressed, and the voltage is then offered to VD5026 by D6~D9. When one of the emitting keys K1~K2 is pressed, the pin is outputting the encoding pulse bundle, which is launched by T4 after modulation(the frequency of the high-frequency oscillator composed of T4 is about 180MHz).
