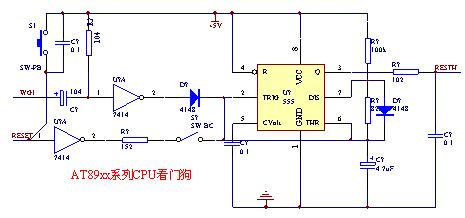

The 51 watchdog circuit

Published:2011/7/6 4:36:00 Author:qqtang | Keyword: watchdog circuit | From:SeekIC

The feed interval of the circuit is less than 3S, the feeding pulse is higher than 5uS, usually, the intermittent pins or pins with period signal keys can be used, just don't affect the former functions.
