Temperature Compensation Circuit

Published:2011/7/11 6:07:00 Author:Robert | Keyword: Temperature, Compensation | From:SeekIC

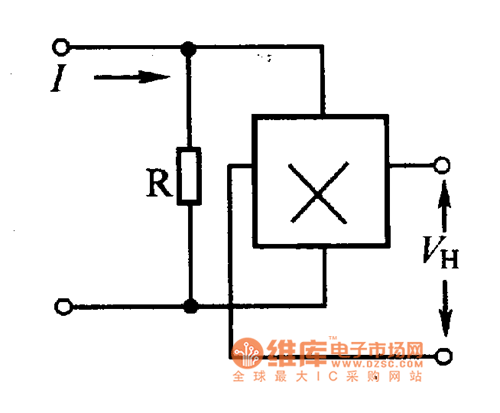

The error caused by the temperature could be compensated by the method of using parallel resistances. Its calculated formula is R＝βRin/α.β. The Rin could be found in the parameter table. Its specific circuit is shown in the picture. The picture shows the temperature compensation circuit.
